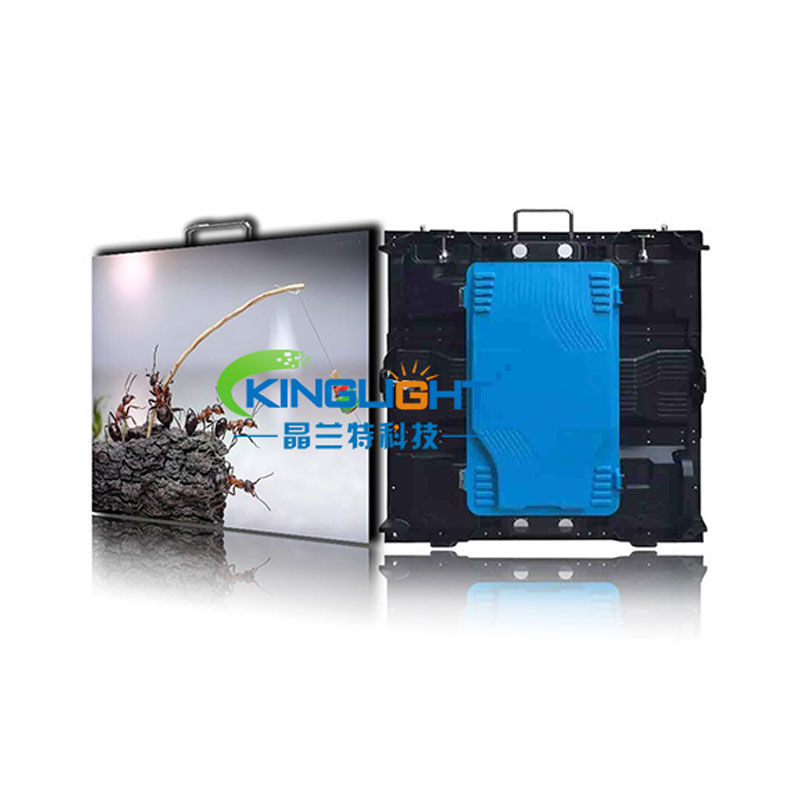

Stage LED display features and advantages
1, The screen design is simple, the compatibility is strong, not only the installation, disassembly is convenient, more cost advantage, suitable for large area manufacturing stage background.
2, High gray, Hihg refresh rate: the use of 12bits data processing, high refresh to make the LED stage screen performance of the image of the scene vivid, abstract images, can create a dream effect.
3, Equipped with a professional audio and video processing system, support for a variety of signal processing on the stage, from the signal processing to ensure the quality, making it possible to play a high fidelity image signal.
4, With dual hot backup line function, two computers and the control of a screen, when when there is a problem with a computer, and another computer automatically succeed to ensure display normal work.
P4表贴三合一技术参数INDOOR P4 SMD 3IN1 TECHNICAL PARAMETERS
|
模组
Unit Module
|
项目 Item
|
参数 Parameter
|
|
产品型号 Model Number
|
KLT-P4-16S
|
|
|
模组尺寸 Module size
|
256mm*128mm
|
|
|
物理点间距 Pixel pitch
|
4mm
|
|
|
物理密度 Pixels Density
|
62500点 / ㎡
|
|
|
发光点颜色 Pixel configuration
|
1R1G1B
|
|
|
LED封装 Package mode
|
SMD2121黑灯
|
|
|
模组分别率 Pixel resolution
|
64dots(W)*32 dots(H)
|
|
|
模组最大功耗 Max Power
|
22W
|
|
|
模组厚度 Module thickness
|
13.07mm(不含磁柱)
|
|
|
25.10mm（含磁柱）
|
||
|
模组重量 Weight
|
0.208kg / 0.242kg
|
|
|
驱动方式 Drive type
|
恒流驱动Constant drive
|
|
|
扫描方式 Scan mode
|
1/16扫 1/16scan
|
|
|
接口方式 Port type
|
HUB75-A
|
|
|
白平衡亮度 Brightness of white balance
|
≥1200cd / ㎡
|
256mm*128mm
|
托架 bracket
|
尺寸 Size
|
256mm*128mm
|
|
LED屏机箱
Cabinet
|
箱体尺寸 Dimension
|
512mm*512mm
|
|
单体模组数 Monomer Module Number
|
8
|
|
|
供电方式 Power supply
|
5V/60A*1 pcs
|
|
|
散热方式 Thermal discharge
|
fan 2pcs
|
|
|
箱体分辨率 Pixel per cabinet
|
128*128
|
|
|
最佳视距 Best viewing distance
|
4M～20M
|
|
|
最佳视角 Best viewing angle
|
160°(W) 120°(H)
|
|
|
环境温度 Temperature
|
存贮storage:-35℃～+85℃
工作working:-20℃～+50℃
|
|
|
相对湿度 Relative humidity
|
10%-95%
|
|
|
屏体厚度 Thickness
|
85mm
|
|
供电
Power
|
工作电压 Working voltage
|
AC220V±10%
|
|
平均功耗 Average Power consumption
|
280W/㎡
|
|
|
最大功耗 Max.Power consumption
|
≤700W/㎡
|
|
|
电流 Current
|
≤20mA(single LED)
|
|
|
控制系统
Control system
|
控制主机 CPU
|
Pentium4 or above P4或以上
|
|
操作系统 Operation system
|
WIN98/2000/NT/XP/WIN7
|
|
|
控制方式 Control method
|
同步控制Synchronization
|
|
|
主要技术参数
Main technical
parameter
|
驱动器件 Driving device
|
Constant drive IC 恒流驱动
|
|
刷新频率 Refresh frequency
|
≥3800HZ
|
|
|
灰度/颜色 Grey scale/colors
|
4096级,可显示16.7M颜色
4096gray level/16.7M colors
|
|
|
平均无故障时间 MTBF
|
≥9000hours
|
|
|
电源开关 Power switch
|
自动开关Automatic switch
|
|
|
显示模式 Display Mode
|
≥800*600/1024*768
|
