Rental LED Display

PRODUCTS

National hotline:

< >

Model:

Scope:

Classification:Rental LED Display

Telephone consultation

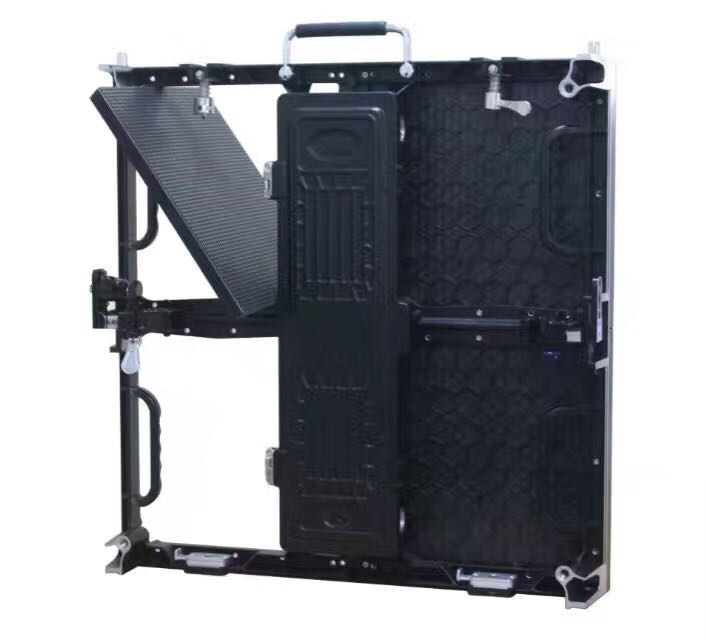

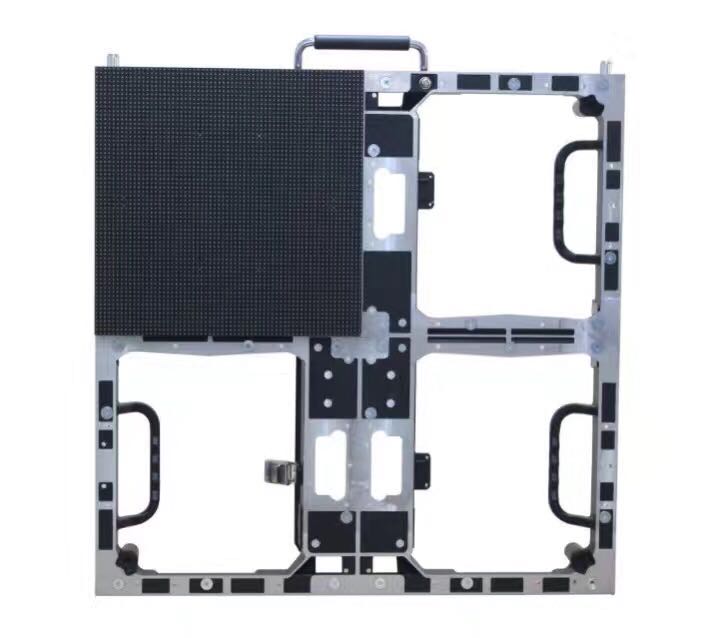

1.Aluminum alloy die-casting molding,structure of high strength

2.Straight,Seamless splicing,highernPrecision

3.High -definition display,picture more fine

3.Equipped with fast connectind lock direct lifting

4.Applies to ourdoor

5.Protection grade :IP65

6.Pace screen thickness is 11CM

7.Cabinet size : 500mm*500mm

8.APPLICABLE : outdoor SMD P3.91/P4.81/P5.95/P6.25/P7.8/P10.416


Specification for OutdoornRental Products 500mm*500mm

Item	P3.91	P4.81	P5.95
Pixel pitch	3.91mm	4.81mm	5.95mm
Lamp	SMD2121 black	SMD2727 black	SMD3535black
Pixel DensityDots/m2	65408	43222	25600
Module Resolusion	64*64	52*52	42*42
Module size	250mm*250mm	250mm*250mm	250mm*250mm
Scan mode	Static current 1/16Scan	Static current 1/13Scan	Static current 1/10Scan
Brightness	≥5500nits	≥5500nits	≥5500nits
Cabinet size	500mm*500mm	500mm*500mm	500mm*500mm
IP Rate	IP65	IP65	IP65
View Angel	120degree -160degree
Signal Processing	10bits or 16bits
Control Distance	CAT5 cable <100m, Multimode optic fiber <500m,Singlemode optic fiber >2km
Refresh frequency	>60HZ
Refresh Rate	>1920HZ
Lifelspan	100 000hours
Working Temperature	Working temperature:-20℃-40℃，Storage temperature：-20℃-60℃
M2 Power consumption(MAX)	<1200W	<1200W	<1000w
M2 power consumption(AVE)	<600W	<600W	<600
Cabinet Weight	6.5kg/pc
